As for barrier, it is one of the security and protection products, which acts as a very important role in security insurance, because for now, people pay much attention to their pravicy, like house, office, shopping center, parking area, industrial area and etc.
As for barrier, it is one of the security and protection products, which acts as a very important role in security insurance, because for now, people pay much attention to their pravicy, like house, office, shopping center, parking area, industrial area and etc. If you want to keep these place safety, barrier is the neccessary product, which will keep your place safety.

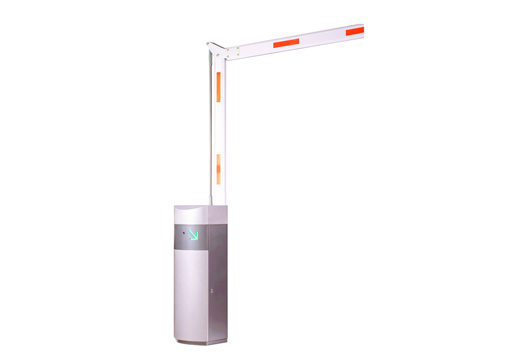

Intelligence parking Barrier gate with special motor main controller with multiple running mode optional . Use of advanced anti-aging waterproof ,durable ,do not fade. reasonable structure design.
Model: FCD-01F
Open Time: 3S
Arm length(Max): 3m(3s),5m(6s)
Arm Size: 3X0.1X0.05m
Working voltage: 220V/110V
Insulation Class: B
Motor power consumption: 120W
Lifetime: >5,000,000
Working Temperature: -30℃—75℃
Weight: 60KG
Protection Class: IP55
Outer Size: 1030*320*330
Product advantage:
1. The retarding mechanism of the motor, the driving mechanism is used to realize the rise and fall's brake lever, using photoelectric detection device for horizontal, vertical, automatic positioning of two limit position.
2. The beautiful appearance generous, structure compact, the box body is made of stainless steel, etc., strong and waterproof.
3. Integrating optical, electrical and mechanical control, flexible operation, convenient, and use safe and reliable.
4. The transmission system with dual self-locking function, can prevent artificial lift rod.
5. With infrared detection protection device or land detection protection device, and advanced pressure waves detection technology, which can effectively prevent smash phenomenon.
6. Chassis species diversity (including standard, sanding, mirror type, titanium curved lever brake,) can be used in different environment and place.
Feature:
Industry-standard design, patent protection products.
Microprocessor design, high integration system, strong logic function.
Integrated motor has high reliability and long service life, stable running, low noise.
Integration of motor and speed reducer design, belt drive and maintenance free.
With manual control, button control, remote control and computer control etc.
Optional infrared or vehicle detector, it has "Automatic Dropping When Car Passed By", "Anti-pound", etc.
Box used advanced waterproof structure and anti-aging outdoor pensu processing, durable, never fade.
