FCL-380KG electromagnetic locks are adaptable to virtually any application utilizing Top Jamb or Glass Door mounting kits.
FCL-380KG Electromagnetic Lock
All series electromagnetic locks include one year warranty and are available in 350lbs, 600lbs,800lbs, and 1200lbs holding force. Compatible with any access control system, all series electromagnetic locks are adaptable to virtually any application utilizing Top Jamb or Glass Door mounting kits. The epoxy-less design provides a superior appearance with a plated or anodized finish on all sides. The interlocking control pcb board mount assembly leaves hands free for wiring and securing of mounting screws.

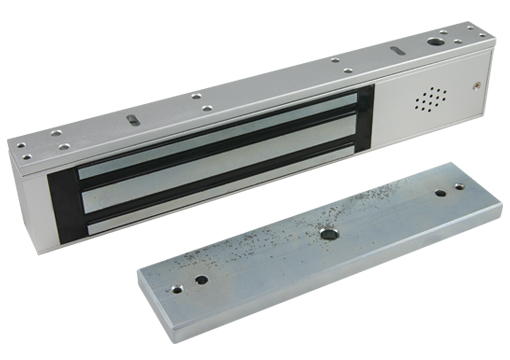

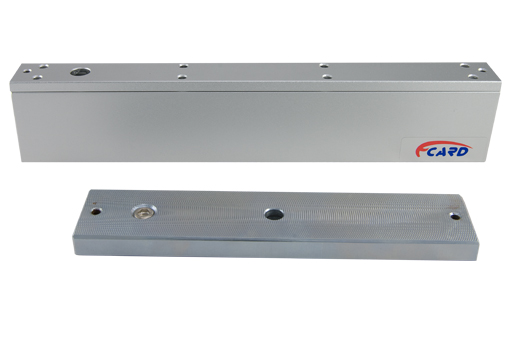

FCL-380KG Single Door Electromagnetic Lock
Technical Parameters:
Working Voltage: DC12V/24V +10%
Working Current: DC12V/480mAx2 24V/240mA
Humidity: 0-95%
Holding Force:280kg(600Lbs) direct pulling force
Working Temperature: -10 to 55℃
Durable Design: Pass 500,000 testing
Weight: 2kg
Lock: 250mmL x 42mmH x 25mmH
Iron Plate: 180mmL x 38mmH x 11mmH
Warranty: 3 years
Applicable: glass door, wooden door, fireproof door.

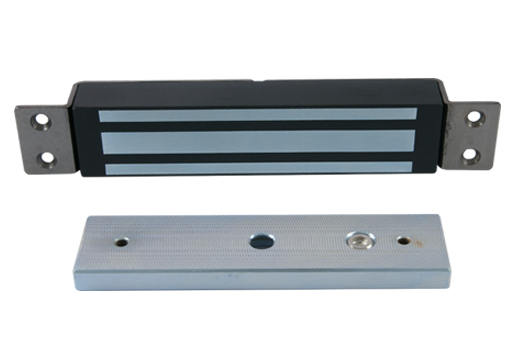

380MS Electromagnetic Lock With Mortise Mount
Technical Parameters:
Working Voltage: DC12V/24V +10%
Working Current: 450mA
Humidity: 0-95%
Holding Force:280kg(600Lbs) direct pulling force
Working Temperature: -10 to 55℃
Durable Design: Pass 500,000 testing
Weight: 1.93kg
Lock: 246.5*50.5*27.5mm
Warranty: 3 years
Applicable: glass door, wooden door, fireproof door

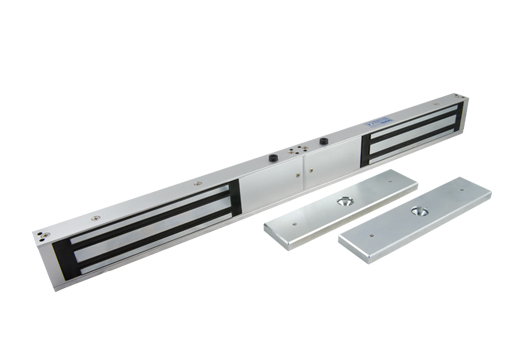

FCL-380KGS Double Door Electromagnetic Lock
Technical Parameters:
Working Voltage: DC12V/24V +10%
Working Current: 900mA
Humidity: 0-95%
Holding Force:300-380kg
Working Temperature: -10 to 55℃
Durable Design: Pass 500,000 testing
Weight: 4.2kg
Lock: 492*56.5*27.5mm
Warranty: 3 years
Applicable: all 90°framed door
Installation Diagram:

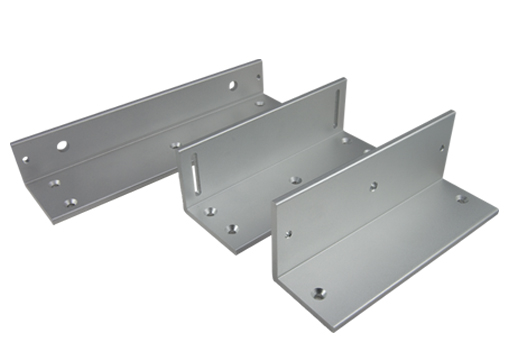

Bracket for the 180Kg/280Kg/350Kg/500Kg Series magnetic lock special design for out-swing narrow door frame door
project to install the magnet, with 5 adjustable holes to suit different door frame.
380 L Bracket
Technical Parameters:
U ElectroMagnetic Bracket
Suitable For 380 series ElectroMagnetic Lock.
Weight:0.32Kg
Size: 250*50*30mm
380 ZL Bracket
Technical Parameters:
U ElectroMagnetic Bracket
Weight: 0.32Kg
Suitable For 380 series ElectroMagnetic Lock.
Size: 250*50*30mm
380UL Bracket
Technical Parameters:
U ElectroMagnetic Bracket
Suitable For 380 series ElectroMagnetic Lock.
Weight:0.42Kg
Size: 180*43*28mm
