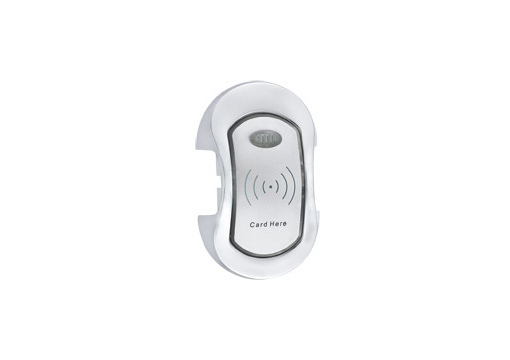

FC-198 Sauna lock series support single card and double card mode, the sauna lock tongue adopts arc metal structure, very durable, color variety, IB card can be printed, external setting emergency power and mechanical unlocking tools, convenient and practical.

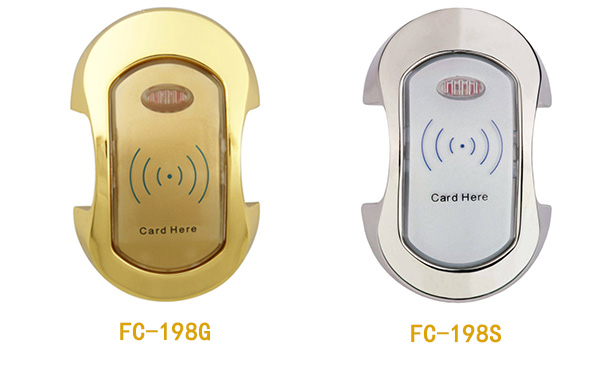

FC-198G/S Sauna lock uses metal shell, the fashionable and dynamic surface decoration shell. The sauna lock tongue adopts an arc metal structure, and is durable in wear. Internationally recognized motor transmission lock tongue to ensure more than five hundred thousand times opened, lock issue card by itself, no need computer.
Sauna lock issue, delete and modify the customers card by admin card, can achieve single card unlock or double card unlock (means the customer card and admin card need to reading together), the sauna lock builds in data processor, can modify the permissions anytime, easy management, password cannot copied, high security, the lock tongue have Tamper and Anti plug alarm function, Sauna lock series adopt three section No. 5 (AA) batteries, with backup power socket and undervoltage alarm function, using induction ID card as the key card, card with dustproof, waterproof, high temperature features, can be made into a watch type used in the hand.
FC-198G/S sauna lock series support single card and double card mode, the lock tongue adopts arc metal structure, very durable, color variety, IB card can be printed, external setting emergency power and mechanical unlocking tools, convenient and practical.
FC-198G/S Sauna lock are widely used in swimming pools, saunas, bathing beaches, golf courses, gym lockers, organs, enterprises, schools, hotels, hotels, supermarkets cabinets or lockers, etc.
Working Temperature:-20℃-70℃
Humidity:<98%
Static Power Supply: < 1 uA
Dynamic Power Supply: < 150 uA
Mode: Single Card/Double Card
Card Type: ID card
Power Supply: DC 4.5V, section 5# (AA) alkaline battery
Battery Life: normal status, unlock>10,000 times, sauna lock also can be opened about 150 times after voltage alarm
Undervoltage indication: Undervoltage indication: when CPU operating voltage is lower than 4.0V, there will be a low pressure alarm prompt, and sauna lock still can open the door about 150 times.
Feature:
Sauna lock appearance is small and has handle function, single and double card unlock function, can be setting and has hierarchical management function. Have emergency power supply and the mechanical unlocking tool, very convenience. Double lock, more safety and security.
Single Card Mode And Double Card Mode:
Press the button which on the circuit board after the sauna lock, and the sound is "di", this is single card mode.
When hear the sound press the button again, sound is "didi" with two times, this is double card mode (And is initialization status, sauna lock tongue retract).
Double Card Mode:
1. Setting Admin Card: Read admin card (two cards), each card reading with once time. (The first reading card and second reading card after initialization).
2. Setting customer card: Reading the admin card with 3 times(red light and green light alternating), then read the customer's card which is corresponding with the
cabinet lock number, after sound "di"，it is successfully.
3. Setting Service Card: Reading the admin card with 2 times(continuous green light),then read serive card, after sound "di"，it is successfully. (All service card need reading).
Single Card Mode:
1. Setting Admin Card: Read admin card (two cards), each card reading with once time.(The first reading card and second reading card after initialization).
2. Setting customer card: (red light and green light alternating), then read the customers card which is corresponding with the cabinet lock number, after sound “di”，it is successfully.
Delete all cards:
Read the admin card with 6 times (when the lock in initialization status, lock tongue is not retracted.Must need reset all cards)
Accessories:
Compatible with FCARD one card management system. Support: Access Control System, Offline Access Control System, Access Control & Time Attendance, Guard Tour,Canteen POS System, Water Controller, Elevator Access Control Board, Parking Lot System etc unified management,to realize one card management system with one card and one database.
