FC-90 contactless ID card module, adopt advanced frequency accept circuitry and insert micro-controller design, combine high-effective decoding algorithm, accomplish data accept to EM4100 compatible format ID card. Possess working current small, high stability function; it's suitable for access control, attendance, charge, anti-shoplifting, inspection and so on.
FC-90 contactless ID card module, adopt advanced frequency accept circuitry and insert micro-controller design, combine high-effective decoding algorithm, accomplish data accept to EM4100 compatible format ID card. Possess working current small, high stability function; it's suitable for access control, attendance, charge, anti-shoplifting, inspection and so on.

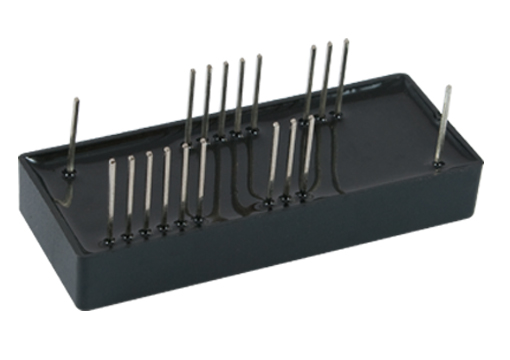

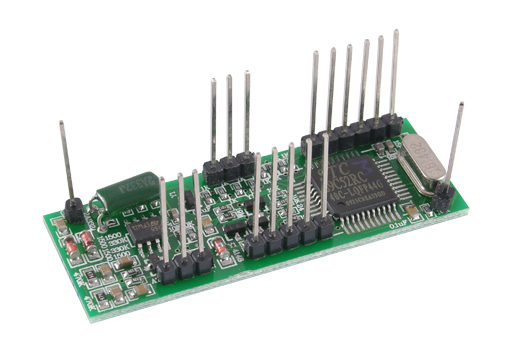

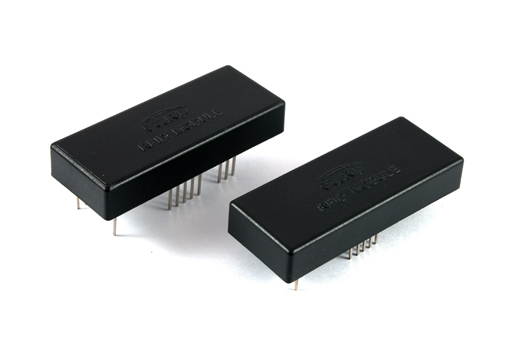

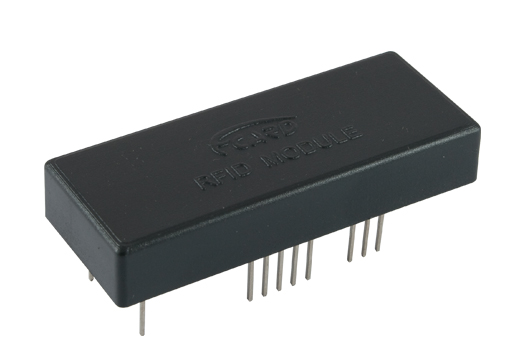

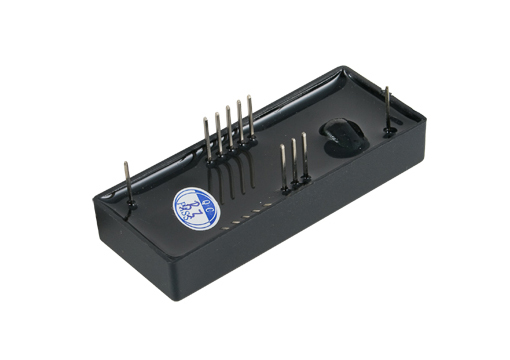

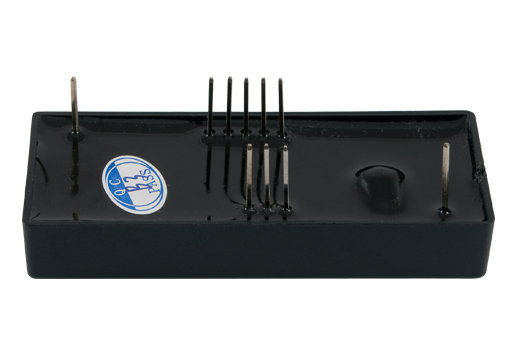

Product Picture:
Product features:
1. Support external sending and receiving antenna
2. The furthest distance to 310 mm
3. The typical decoding time is less than 50 ms
4. A single power supply, low power wasting
5. Support wiegand (Wiegand26) and ABA port
6. Support EM4100 compatible format ID card (64 bits, Manchester code)
7. Pin compatible with 40 pin IC packages
8. Packaging design is suitable for the harsh working environment
9. Size: 30x25x10mm

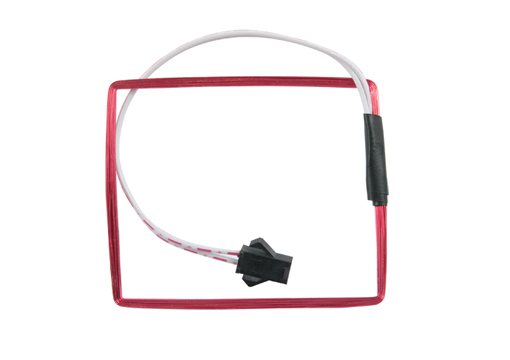

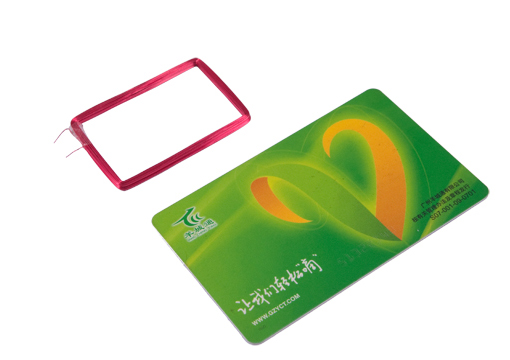

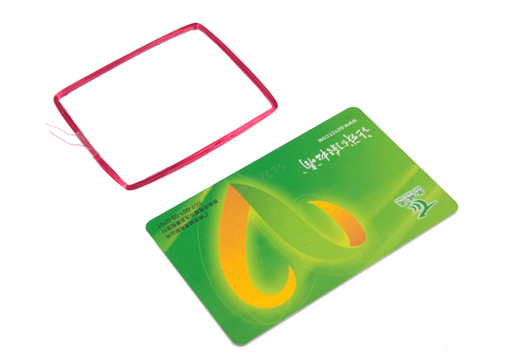

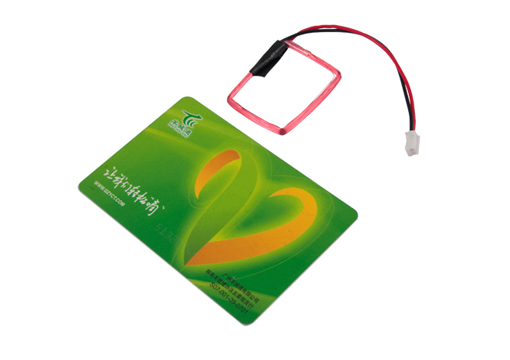

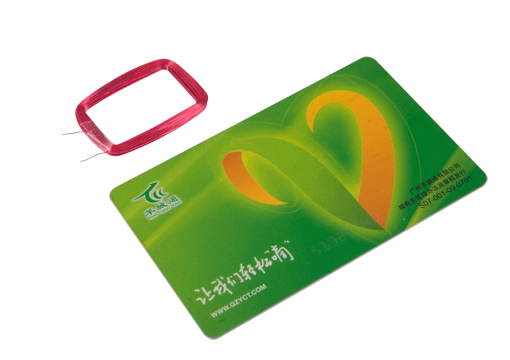

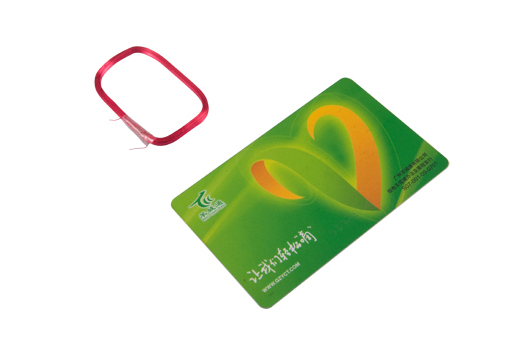

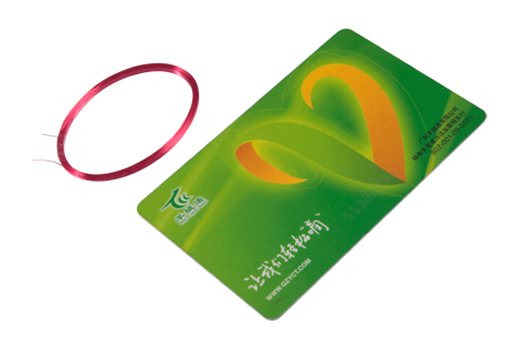

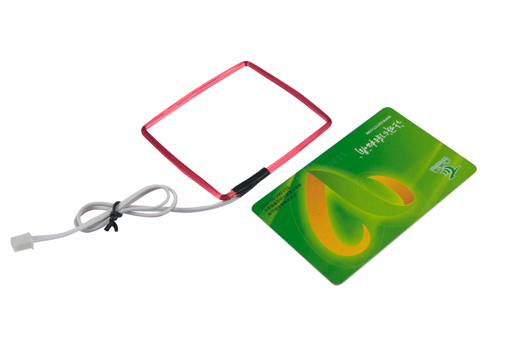

Antenna Outlook:
Our company provides antenna shape and size customized
The power features:
Power supply voltage: DC3-5 v
Working current: 30-50 mA
Operating frequency: FREQ. 100-150 KHZ (standard for 125 KHZ)
Range: DIS 0-180 - mm
Decoding time: TDEC. 65-100 ms
Working temperature: TOPR 0 ~ + 70 ℃
Storage temperature: TSTR - 55 ~ + 125 ℃
Pin arrangement: (the DIP - 40 encapsulation format)

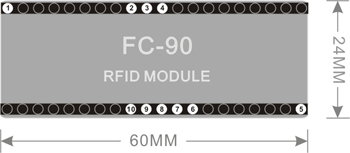

Pin Arrangement:
1. ANTENNA1 external antenna
2. BUZ peripherals control buzzer
3. LED red light
4. SEL WG, ABA output mode conversion
5. ANTENNA2 external antenna
6. HOLD (CP) card or ABA signal
7. WG1 (CLK), 232 wiegand data output 1 or ABA clock output or TTL232 output
8. WG0 (DATA) wiegand data output 0 or ABA DATA output
9. GND
10. + 5 v power supply
