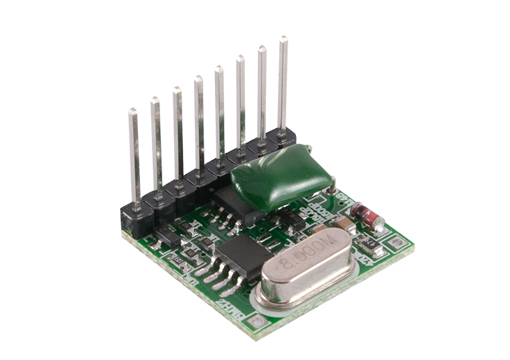

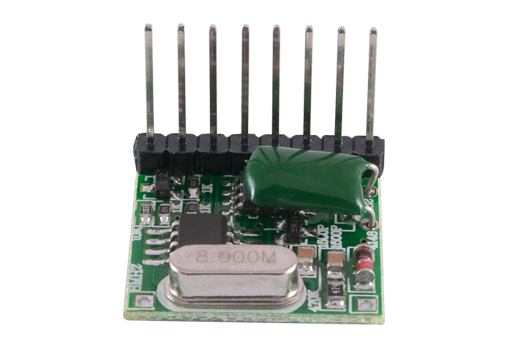

FC-90 contactless ID card module, adopt advanced frequency accept circuitry and insert micro-controller design, combine high-effective decoding algorithm, accomplish data accept to EM4100 compatible format ID card. Possess working current small, high stability function.
FC-90 contactless ID card module, adopt advanced frequency accept circuitry and insert micro-controller design, combine high-effective decoding algorithm, accomplish data accept to EM4100 compatible format ID card. Possess working current small, high stability function; it's suitable for access control, attendance, charge, anti-shoplifting, inspection and so on.
Product Features:
1. Support external sending and receiving antenna
2. The furthest distance to 310 mm
3. The typical decoding time is less than 100 ms
4. A single power supply, low power wasting
5. Support wiegand (Wiegand26) port
6. Support EM4100 compatible format ID card (64 bits, Manchester code)
7. Support the buzzer drive control output (read card buzzer one time)
8. Packaging design is suitable for the harsh working environment
9. Support LED driver control output (read card lights one time )
10. Built-in watchdog circuit, effectively prevent the system crash
11. Subminiature encapsulation
Technical Parameter:
1. Extreme Parameter:

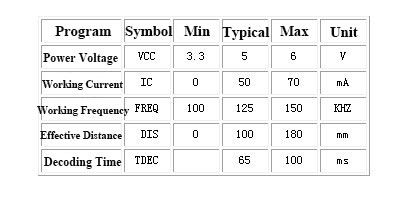

2. Specification: (except special state, the specification is TA＝25℃ and VCC＝+5V)
3. Size: (20mm X 20mm X8mm (including plastic shell is 24mm X 24mm X10mm）
Pin 1: BUZ (buzzer drive pin, output high level electricity)
Pin 2: LED (card reader light driver pin, the output low level electricity)
Pin 3: WG1 data output 1
Pin 4: WG0 data output 0
Pin 5: VCC (+ 5 v)
Pin 6: GND
Pin7, 8: TNA (coil)

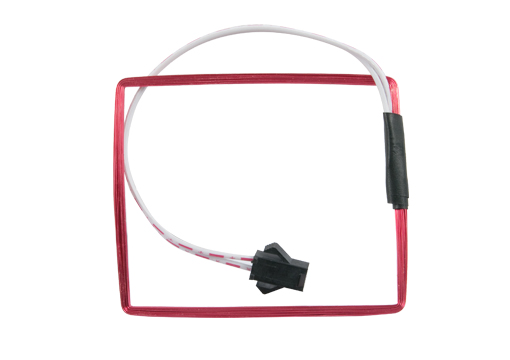

Antenna Outlook:
Our company provides antenna shapeand size customized
