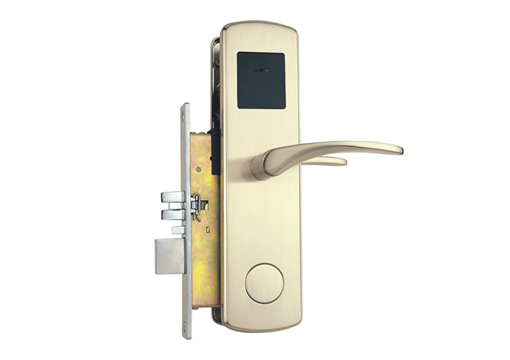

03H-5-A Hotel Lock With RF Card

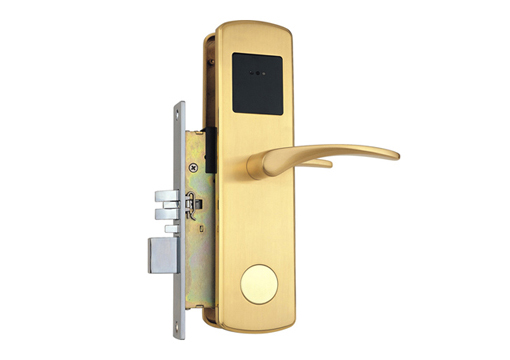

03H-5-B Hotel Lock With RF Card
(the above products can provide OEM service and order circuit module separately)
03H-5-B Hotel lock breakthrough three class management mode, using a more reasonable five level management way, such as hotel、floor、clean、 room、safe and reliable.RFID Hotel lock open the door card can selected, time limit, emergency, channel, portfolio management, RFID Hotel lock can stored within the unlock card information, including the card types, date and time; Adopt a variety of ways such as limit, regular, limited to cancel the door open function, the room can perform the function of don't disturbed, exquisite hidden inner mechanical lock core to ensure foolproof.
Performance Specifications: built-in real-time clock
Power Source: DC6V, adopt 4 section 5 alkaline batteries
Current: < 8μA
The working current: < 220 mA
Battery life: over 5000 open times in normal circumstances
Open time: within 6 seconds after the card
Undervoltage instruction: when undervoltage read card has "di di" prompt, while still able to unlock 100 times
Inside the lock record: latest 240 records
Applicable: 35 to 60 mm wood door, fire door, the door thick edge width is not more than 112 mm (5 tongue standard lock core, spring lock)
Temperature: 5-60 degrees temperature
Humidity: 10% to 95%, no corrosive gas and dust
Main Function:
RFID Hotel lock open the door card can selected, time limit, emergency, channel, portfolio management, RFID Hotel lock can stored within the unlock card information, including the card types, date and time; Adopt a variety of ways such as limit, regular, limited to cancel the door open function, the room can perform the function of don't disturbed, exquisite hidden inner mechanical lock core to ensure foolproof.
Features:
Using new generation of encryption algorithms, more security.
Mechanical keys can not be unlocked directly, unless the line does not working, to solve security risks.
Standard European style lock
The data of open/close door all will be recorded.
Battery low voltage detection function, automatic detection of voltage and alarm prompt.
Not closed alarm.
Classic, modern, luxury, solid.
All pass forging or zinc alloy die casting.
Function Brief:
There are five system functions in the program group: operator management, initialization card, room setting, system maintenance, front desk management.
1、Operator Management: Defines the user name of the system operator and setting the system privilege for it use.
2、Initialize Card: initialize the new cards be the system cards.
3、Room Settings: input the hotel room's information and issue installation card、maintenance card、clearance cards.
4、System Maintenance: issue admin card(including master control card、regional card、
floor number card、hour card, etc.) read the data card record, check the operation log.
5、Front Desk Management: this function is the core part of the system which is used by the front desk operator of the hotel. Responsible for guest registration, issue housing card, handle guest registration, check out, continued room, fill card and so on.
Door Card:
Contact encryption IC card
Light touch encryption (TM) card
Non-contact induction IC card
