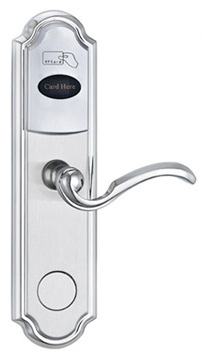

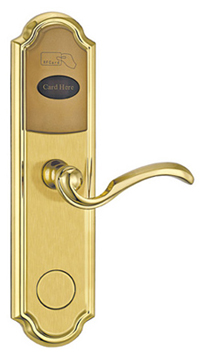

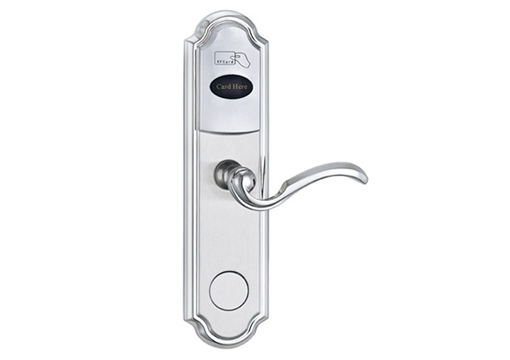

FC-181 RF S/G (Brushed Stainless Steel PVD) Hotel lock unlock card can select time limit, emergency, channel, portfolio management, FC-480RF-S/G (Brushed Stainless Steel PVD) Hotel lock can stored within the unlock card information, including the card types, date and time.
FC-181RF-S/G (Brushed Stainless Steel PVD) Hotel lock breakthrough 3 level management mode, adopt a more reasonable management of the hotel, building, floor, clean, room, safe and reliable. FC - 181 - S/G (Brushed Stainless Steel PVD) adopt password change to advanced encryption algorithm, the operator card password authorization management, and have an expiration control card copy invalided.
Locked the upper part of the body before and after the lock
Rotary locked
Reduction gear motor structure
Size totally same with the mechanical standards
Center distance is 70mm European standard
suitable for security electronic door lock
Ceter distance 55mm to 70mm
The length of the lock tongue is 20mm
Supply voltage is 4.5V-6V
Static Power Supply: < 10up
Working Current: <300mA
Power Cosume: statuc ≤200mA
Working Voltage: DC6V,1.5 x AA “alkaline battery 4 section”
Humidity: 10%-85H%RH
Temperature:-20℃- +60℃
Main Function:
FC-180 RF S/G (Brushed Stainless Steel PVD) Hotel lock open the door card can selected, time limit, emergency, channel, portfolio management, FC-180 RF S/G (Brushed Stainless Steel PVD) Hotel lock can stored within the unlock card information, including the card types, date and time; Adopt a variety of ways such as limit, regular, limited to cancel the door open function, the room can perform the function of don't disturbed, exquisite hidden inner mechanical lock core to ensure foolproof.
Special Function:
Famous design, eternal quality、more security, smart card and key double opening way, the standard five bolt lock core, strengthen lock tongue, durable, low voltage alarm function.
Features:
Using new generation of encryption algorithms, more security.
Mechanical keys can not be unlocked directly, unless the line does not working, to solve security risks.
Standard European style lock
The data of open/close door all will be recorded.
Battery low voltage detection function, automatic detection of voltage and alarm prompt.
Not closed alarm.
Classic, modern, luxury, solid.
All pass forging or zinc alloy die casting.
Function Brief:
There are five system functions in the program group: operator management, initialization card, room setting, system maintenance, front desk management.
1、Operator Management: Defines the user name of the system operator and setting the system privilege for it use.
2、Initialize Card: initialize the new cards be the system cards.
3、Room Settings: input the hotel room's information and issue installation card、maintenance card、clearance cards.
4、System Maintenance: issue admin card(including master control card、regional card、
floor number card、hour card, etc.) read the data card record, check the operation log.
5、Front Desk Management: this function is the core part of the system which is used by the front desk operator of the hotel. Responsible for guest registration, issue housing card, handle guest registration, check out, continued room, fill card and so on.
Hotel Lock System Chart:
Component manufacturing material: stainless steel
Card technology: EN card, /T5557 card, /Mifare1 card
Lock Core Structure:
1. Using three-dimensional planar motion principle, simple and reliable.
2. 5 lock tongue linkage structure, more secure.
3. Inserted latch: 100% guaranteed.
4. Combined Inclined Tongue: open the door easily, to reduce vibration.
5. Internal lock core with micro switch, all kinds of working state can be recorded.
6. Counter lock function are more intimate.
Accessories:
